1. Machine Introduction

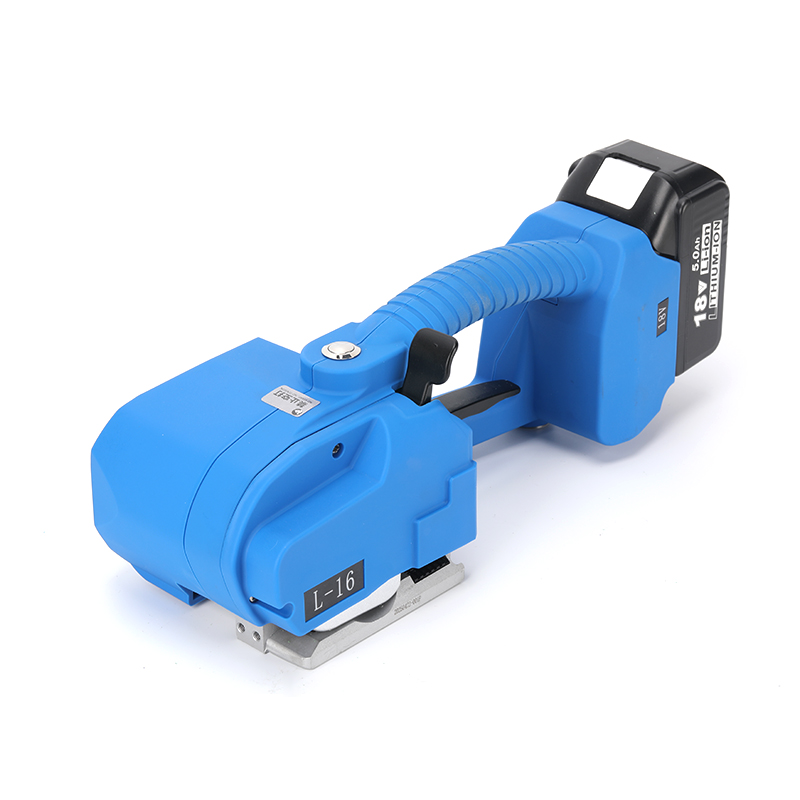

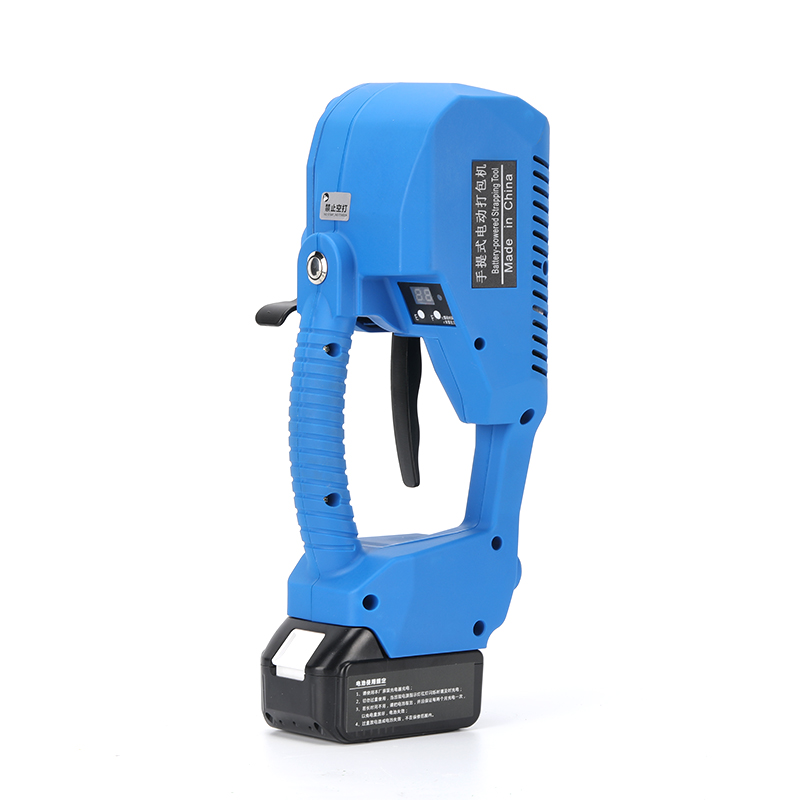

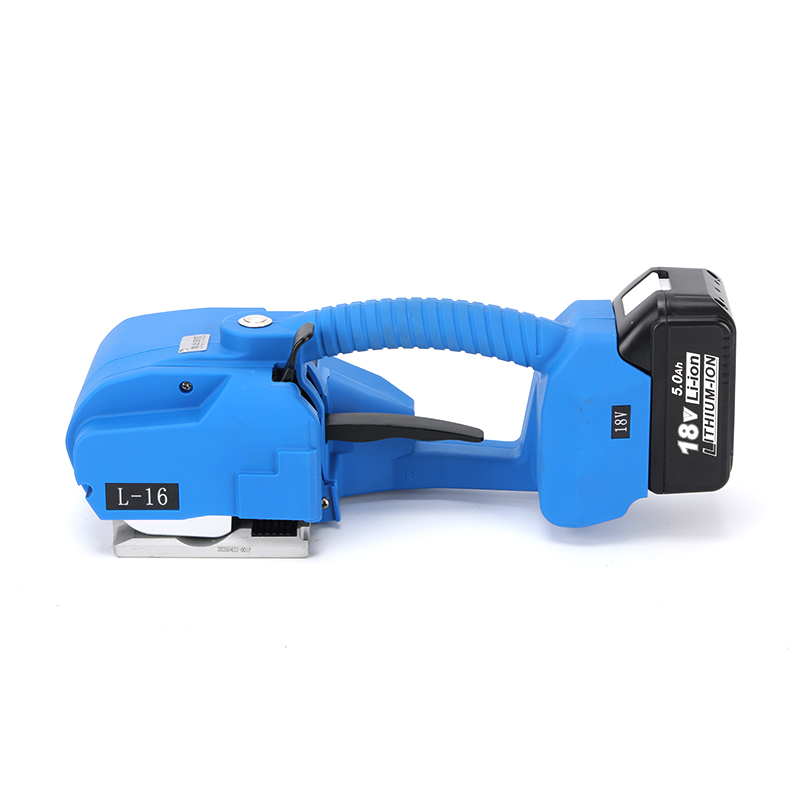

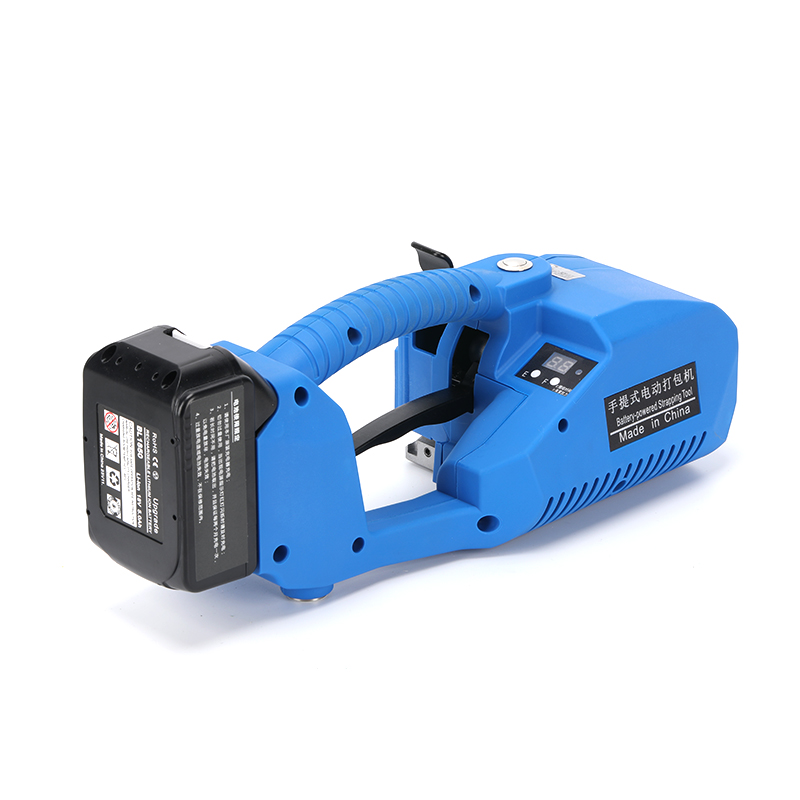

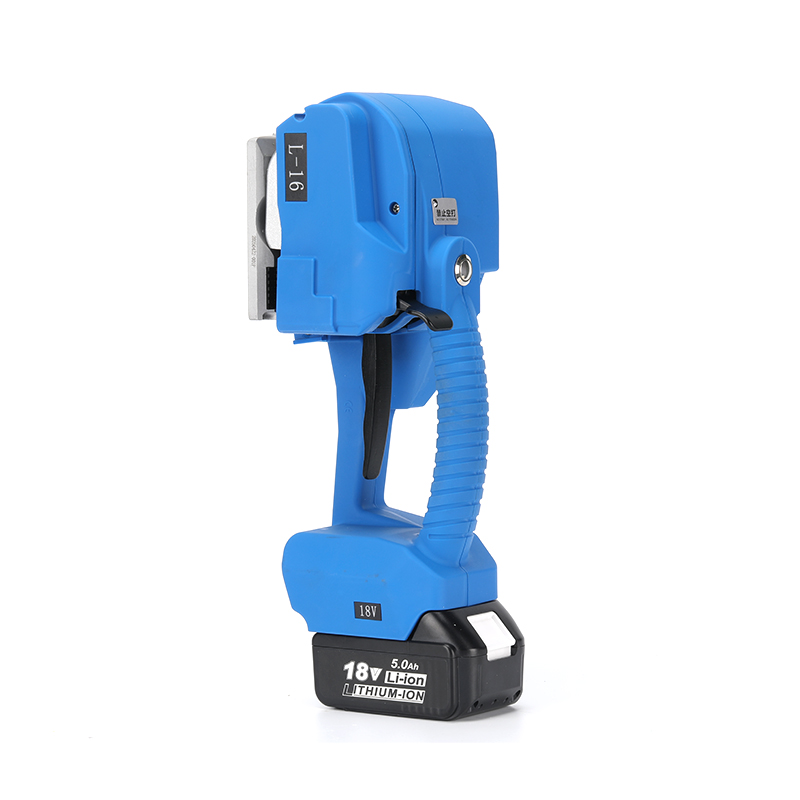

The L-16 is engineered for operations that demand flexibility above all else. Unlike single-speed machines, it features a variable-speed motor that lets operators dial in anywhere from 50 mm/s to 150 mm/s, adapting the strapping pace to the fragility or robustness of each package. Its tension system spans 60 to 2,500 N with stepless adjustability, giving the user precise control over how much force is applied. The machine's standout advantage, however, is its strap width acceptance: from as narrow as 9 mm up to 16 mm, covering a territory no other model in this lineup can match. Weighing 3.34 kg with a compact 310 mm body length, the L-16 is powered by a DC 18V 5,000 mAh lithium battery, balancing endurance with maneuverability.
2. Where It Excels
The L-16 thrives in environments where package variety is the norm rather than the exception. It is the go-to tool in multi-purpose logistics hubs that handle everything from small cartons to mixed pallet loads; in third-party logistics (3PL) warehouses where client requirements change daily; in fresh-produce and cold-chain facilities where different strap widths are used for different commodity types; in printing and paper industries where reels and stacks vary in size and density; and in cross-docking terminals where speed and adaptability directly impact turnaround times. The L-16's variable speed is especially valued in operations handling mixed-fragility goods — operators run slow and gentle for delicate items, then ramp up speed for sturdy cartons, all without switching tools.
3. Distinctive Attributes
Parameter | Specification |
|---|---|
Dimensions (L×W×H) | 310 × 135 × 130 mm |
Gross weight (battery included) | 3.34 kg |
Tension force range | 60 – 2,500 N (adjustable) |
Cycle speed | 50 – 150 mm/s (variable) |
Strap material compatibility | PET and PP |
Strap size range | Width: 9–16 mm, Thickness: 0.5–1.2 mm |
Power source | DC 18V Li-ion 5,000 mAh |
Charge duration | 40 – 90 minutes |
Variable-speed drive (50–150 mm/s): A hallmark feature absent from the other two fixed-speed models. Operators can select low speed for precision work or fragile contents, and high speed for standard packaging — a single machine that behaves like two.
Industry-widest strap acceptance (9–16 mm): The L-16 accommodates the narrowest 9 mm strap used for small retail cartons as well as the standard 16 mm strap for pallet securing, making it the only model that can span the full spectrum of commercial strapping widths.
Fine-tension adjustment (60–2,500 N): The control knob allows micro-adjustments of strapping force, preventing damage to soft-edged packages while still providing sufficient tightness for medium-weight loads.
Shortest body for tight quarters: At 310 mm overall length, the L-16 fits into cramped spaces where longer machines cannot operate — ideal for packed warehouse aisles and crowded workstations.
Engineering-plastic hybrid shell: The housing combines fiber-reinforced engineering plastic with metal inserts, reducing weight while maintaining structural rigidity and thermal dissipation.
Auto-cycle with tactile feedback: A single press initiates the full strapping sequence; the handle delivers a subtle vibration upon cycle completion, so operators know the job is done without looking away from the workpiece.
Wear-resistant sealing plate: The welding surface is coated with a non-stick, high-temperature layer that extends service life and reduces carbon buildup during repeated friction welding cycles.
Flexible power management: The detachable 18V battery pack can be charged independently of the machine, and the battery level indicator on the pack allows operators to plan swaps proactively before the charge runs out.
