1. Machine Introduction

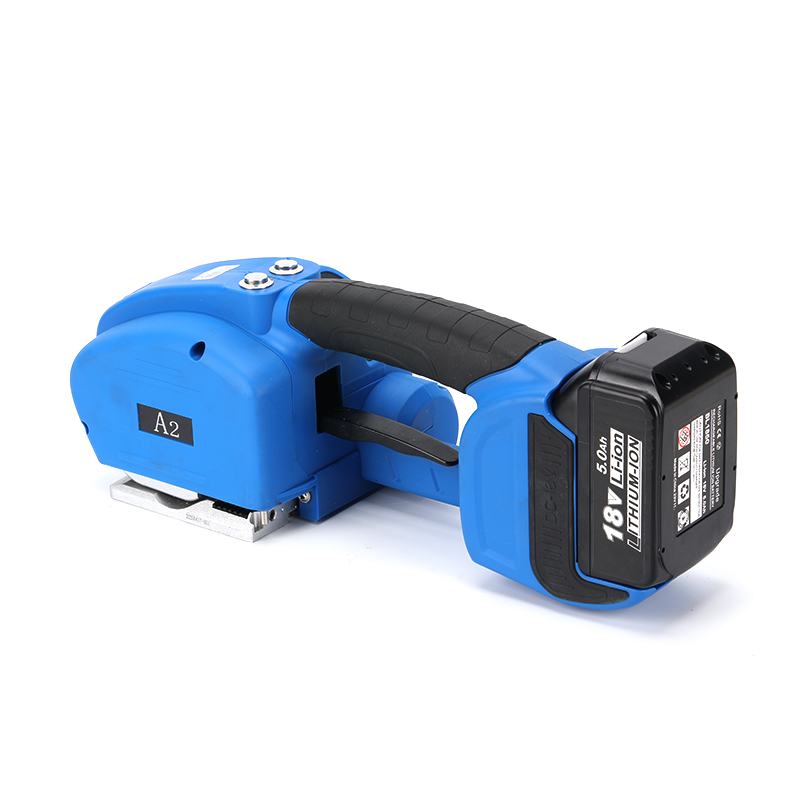

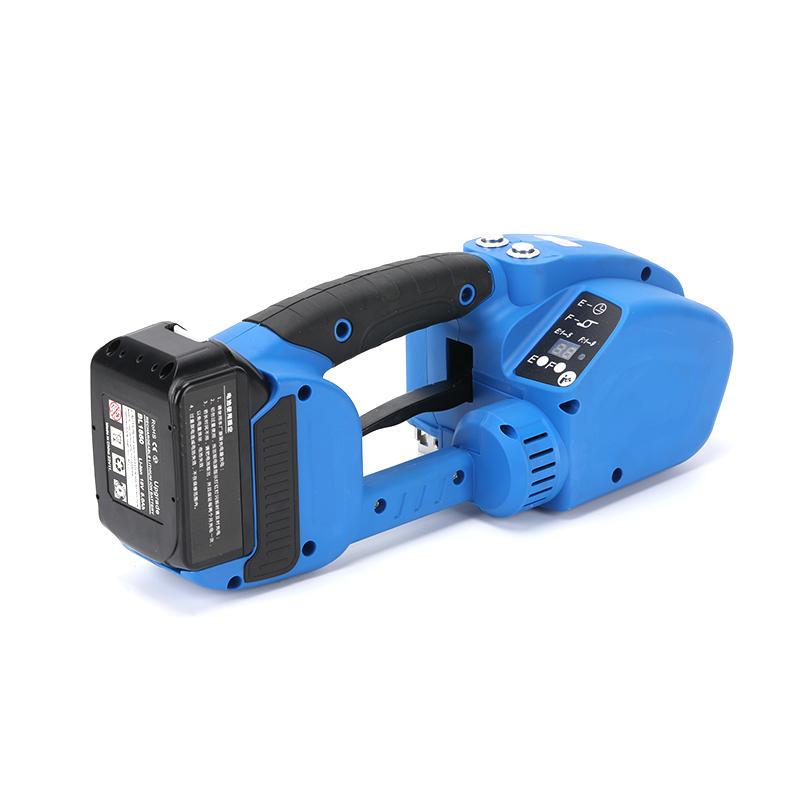

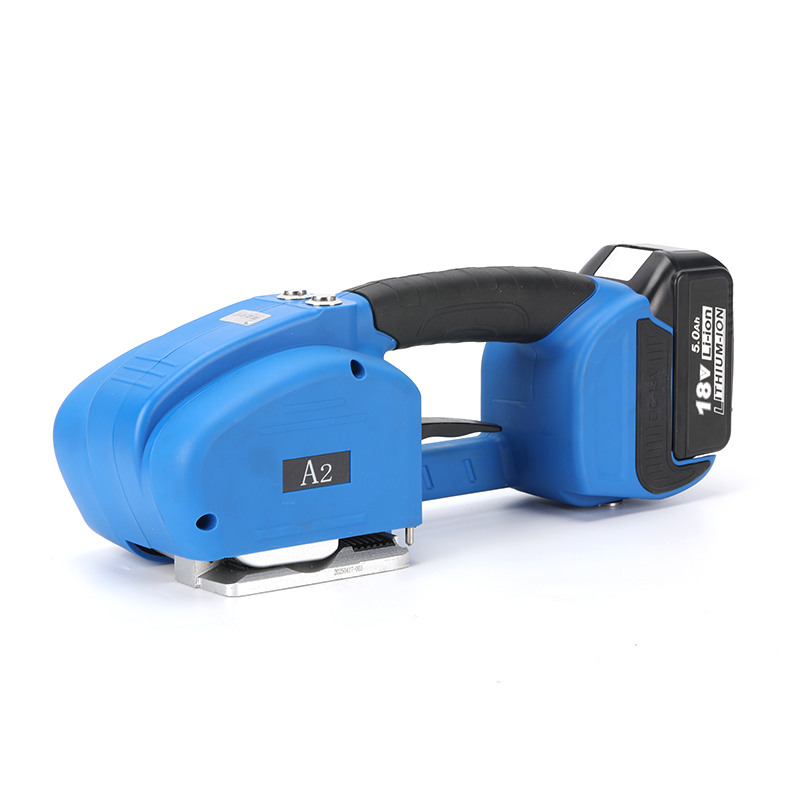

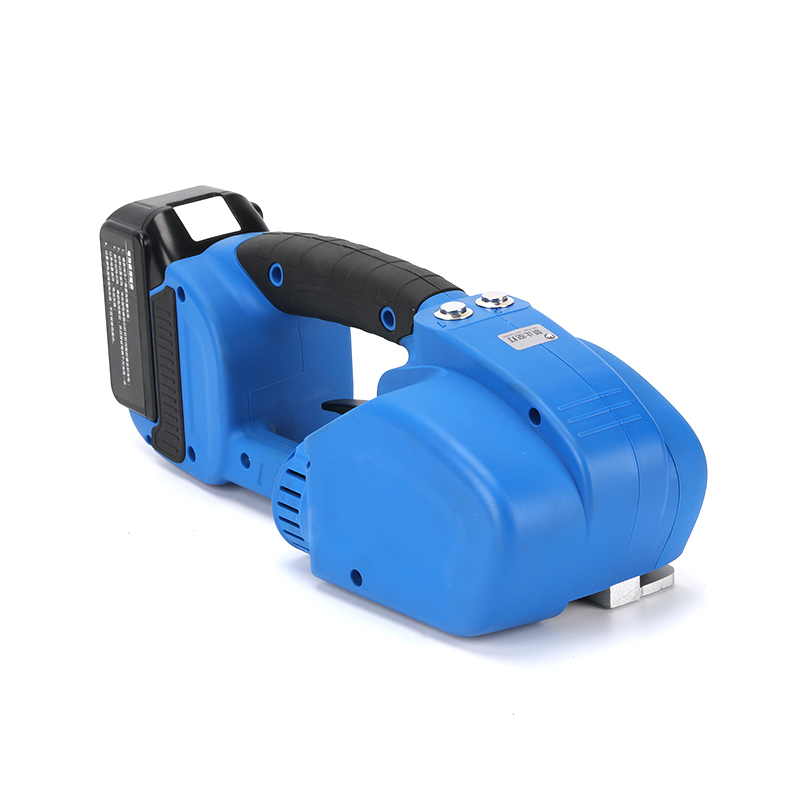

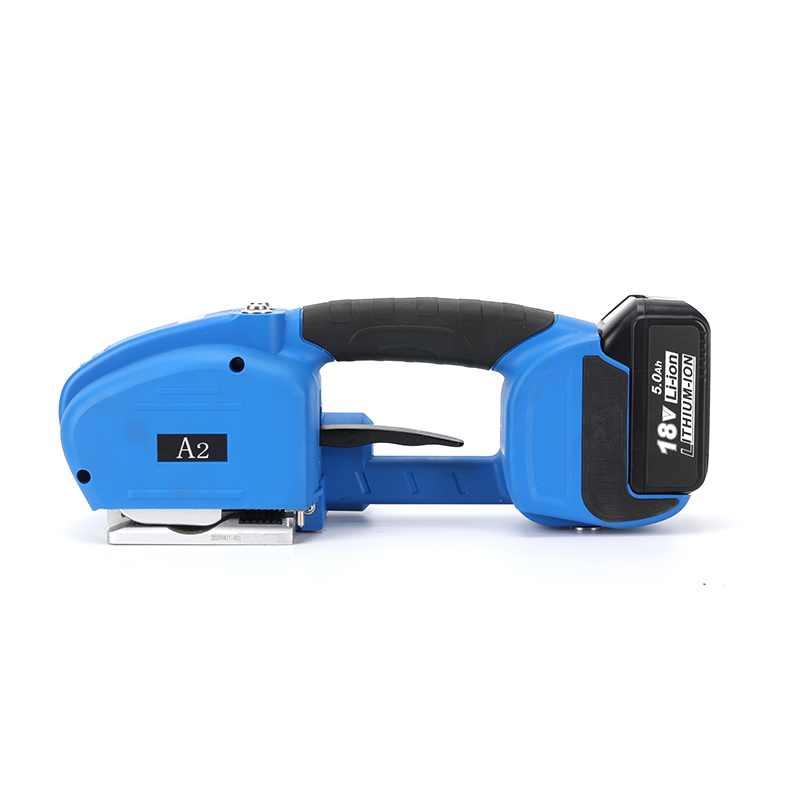

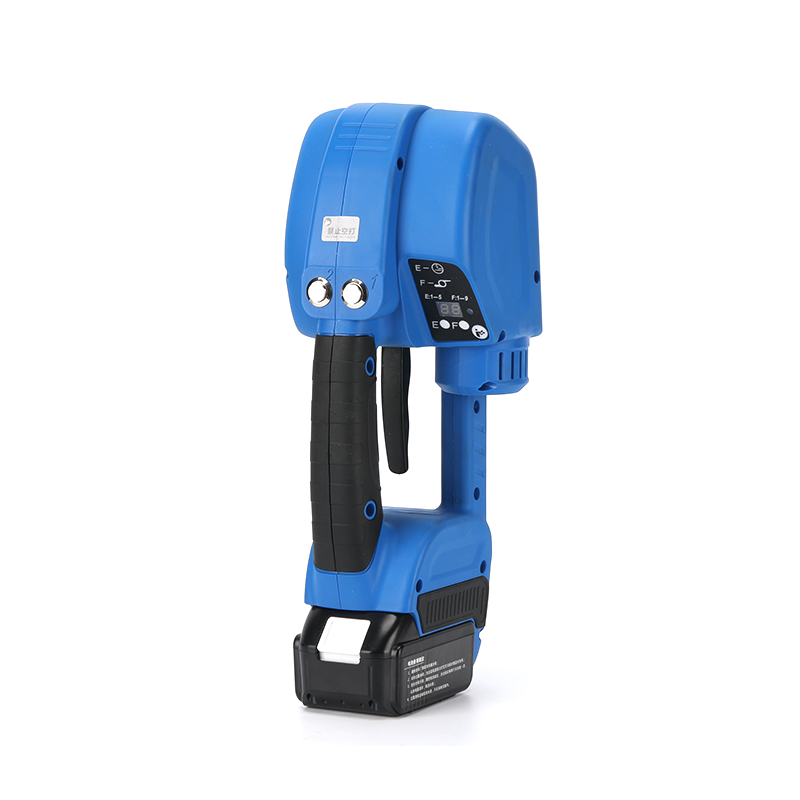

The A2 represents the pinnacle of Chuangzhida's strapping technology, purpose-built for the most demanding industrial environments where nothing less than maximum force will suffice. At the heart of this machine lies a high-torque motor system capable of delivering a brute-force tension of 3,200 N — the highest pull strength available across the entire product range. This enables the A2 to securely strap dense, heavy, and oversized loads that would overwhelm lesser machines. The fixed 120 mm/s strapping speed ensures rapid cycle completion, while the 18V 5,000 mAh lithium-ion battery sustains prolonged high-intensity operation. The battery module's quick-release mechanism allows for instantaneous swap-out, keeping production lines moving without interruption.
2. Where It Excels
The A2 is deployed in sectors where packaging failure is not an option. Primary environments include heavy steel fabrication workshops, where bundles of rebar and structural steel sections demand extreme tension to remain stable during transport; forestry and timber processing plants, where wet or dense hardwood stacks require uncompromising strapping force; concrete block and brick manufacturing yards, where heavy masonry units must be tightly secured for safe palletized handling; and large-scale industrial export warehouses, where oversized machinery parts and metal components are prepared for international shipping. In these settings, the A2's 3,200 N pulling force is not a luxury — it is a necessity.
3. Distinctive Attributes
Parameter | Specification |
|---|---|
Dimensions (L×W×H) | 370 × 128 × 136 mm |
Gross weight (battery included) | 3.5 kg |
Tension force range | 500 – 3,200 N |
Cycle speed | 120 mm/s (fixed high-speed) |
Strap material compatibility | PET and PP |
Strap size range | Width: 14–16 mm, Thickness: 0.6–1.2 mm |
Power source | 18V Li-ion 5,000 mAh (model 1850) |
Charge duration | 40 – 90 minutes |
3,200 N brute-force tension: Surpasses both other models by 700 N, making it the definitive choice for heavy-load strapping. The F-dial (settings 1–9) offers graduated tension control so operators can scale force up or down without sacrificing the upper ceiling.
Rapid 120 mm/s fixed-speed strapping: Engineered for maximum throughput; each strapping cycle is completed in the shortest possible time, critical for high-volume industrial packaging lines.
Precision digital welding control: The E-dial (settings 1–5) governs sealing duration with fine granularity, allowing the operator to match heat exposure precisely to strap thickness and material composition for optimal joint integrity.
Heavy-duty alloy drivetrain: Internal gears, springs, and the welding plate are constructed from military-grade high-strength alloy, providing exceptional resistance to wear, impact, and repeated thermal stress.
Extended battery endurance: The 18V 5,000 mAh lithium pack delivers sustained power for hundreds of consecutive strapping cycles on a single charge, minimizing battery swap frequency during peak production.
High-traction textured grip: The handle is engineered with a deep anti-slip rubber texture and contoured palm rest, providing a secure hold even when operators are wearing industrial work gloves.
Automatic friction welding: Upon trigger activation, the machine performs the full strapping, tensioning, welding, and cutting sequence autonomously, requiring zero manual intervention from the operator.
Quick-strap release mechanism: A dedicated elongated release lever ensures the welded strap detaches cleanly from the base plate every time, eliminating downtime caused by stuck or jammed straps.
