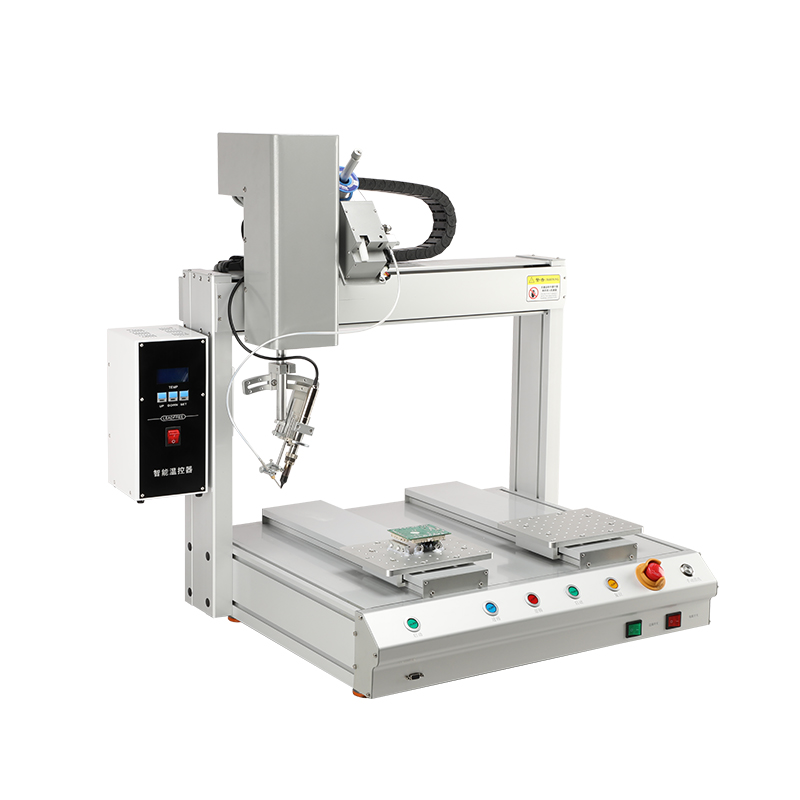

The CZD Automatic Soldering Robot is a desktop 3-axis soldering machine designed for high-precision, automated soldering of electronic components, PCBs, and various industrial parts. Built with an aviation-grade aluminum alloy frame and equipped with an intelligent temperature controller, this machine delivers consistent solder joint quality, fast temperature recovery, and reliable performance — all at the push of a button.
Whether you work in electronics manufacturing, automotive assembly, home appliance production, or toy fabrication, this soldering robot helps you improve efficiency, reduce defects, and lower labor costs.
Problem | Solution |
|---|---|
Manual soldering is slow and inconsistent | Automated soldering delivers fast, repeatable results |
High defect rates (cold solder, missing joints) | Precise temperature control (±1°C) eliminates defects |
Skilled labor shortage and rising labor costs | One machine replaces multiple manual soldering workers |
Difficult to maintain consistent quality across shifts | Programmable motion ensures every joint is identical |
Solder wire waste and splashing | Intelligent solder feeding reduces waste and splashing |
Feature | Description |
|---|---|
3-Axis Motion System | X/Y/Z axes with stepper motor drive for precise positioning |

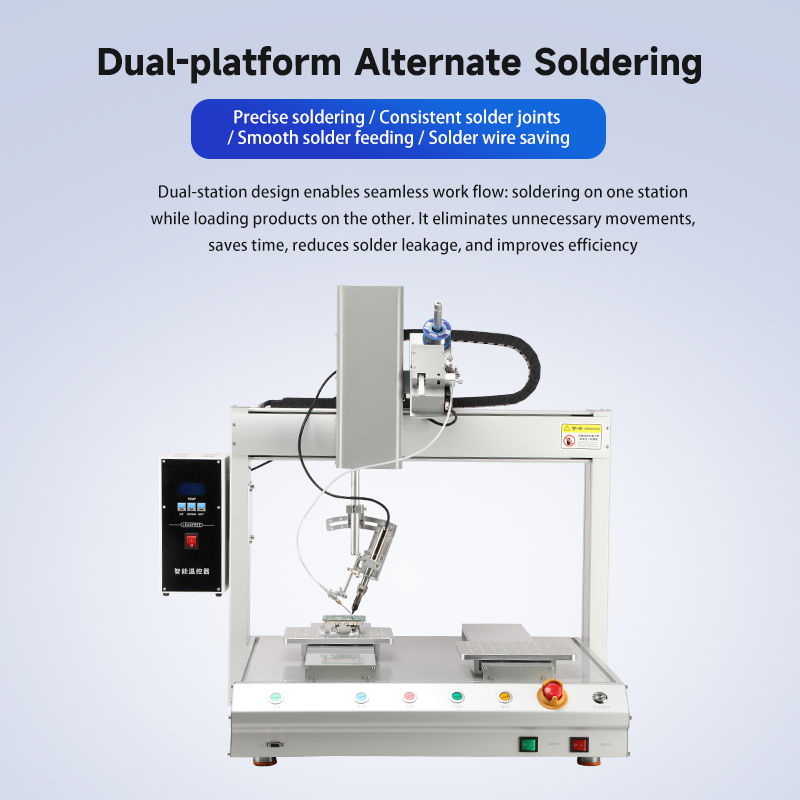

Dual Y-Station Design | Solder on one station while loading on the other — seamless workflow |
Intelligent Temperature Controller | Touch-control range 100°C-500°C, accuracy ±1°C |
Multiple Soldering Modes | Supports spot welding, drag welding, in-line welding, arc welding |
Precision Solder Feeding | Controllable solder volume, anti-jam design, compatible with 0.6-1.5mm wire |
Fast Temperature Recovery | Front sensor on soldering pen for quick temp recovery |
Quick-Change Soldering Tip | Oriented quick-plug design for fast, convenient replacement |

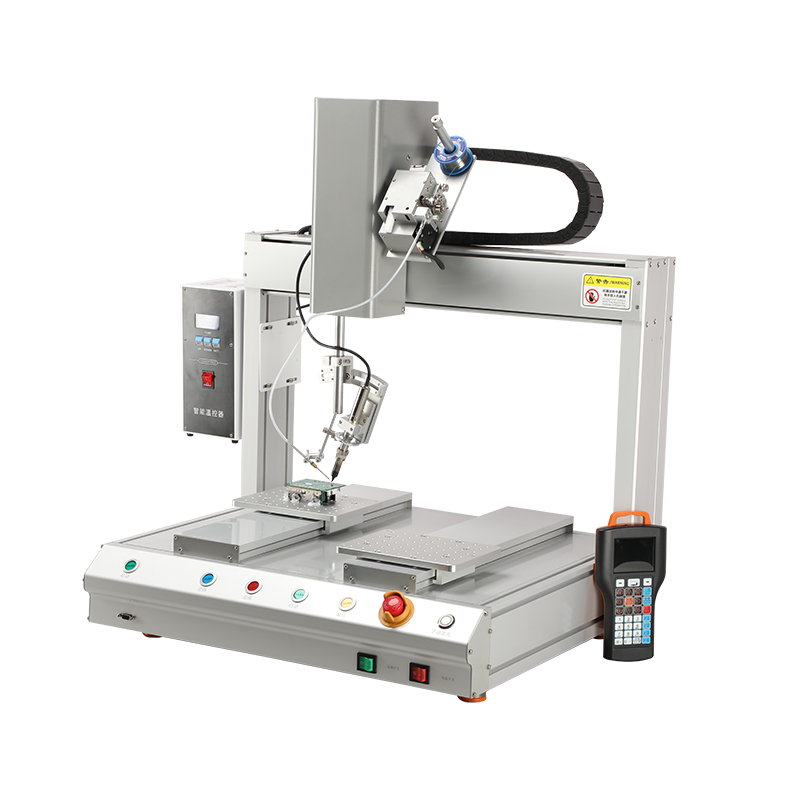

Handheld Teaching Pendant | Easy programming, single-step simulation, bilingual interface (Chinese/English) |
Aviation-Grade Aluminum Alloy Frame | Reliable, durable, rust-proof, and corrosion-resistant |
Safety Features | Emergency stop, over-temperature alarm, leakage detection alarm |
Adjustable Sleep Timer | 10-990 seconds auto-sleep for energy saving |
CE Certified | Meets European safety standards |
Parameter | Specification |
|---|---|
Input Voltage | 110V or 220V (50Hz) |
Display Type | Chinese Interface (bilingual optional) |
Working Stroke (X×Y×Z) | 495×295×295×100mm×360° |
Driving Mode | Stepper Motor |
Motion Control Mode | Programmable |
Workbench | Dual Y-station |
Workbench Load Capacity | 15 kg |
Static Temperature Control Accuracy | ±1°C |
Temperature Control Range | 0-450°C |
Solder Feeding Range | 0.6-1.5 mm |
Whole Machine Power | 300W |
Supported Welding Patterns | Spot welding, drag welding |
Whole Machine Weight | 67 kg |
Overall Dimensions (L×W×H) | 600×660×830 mm |

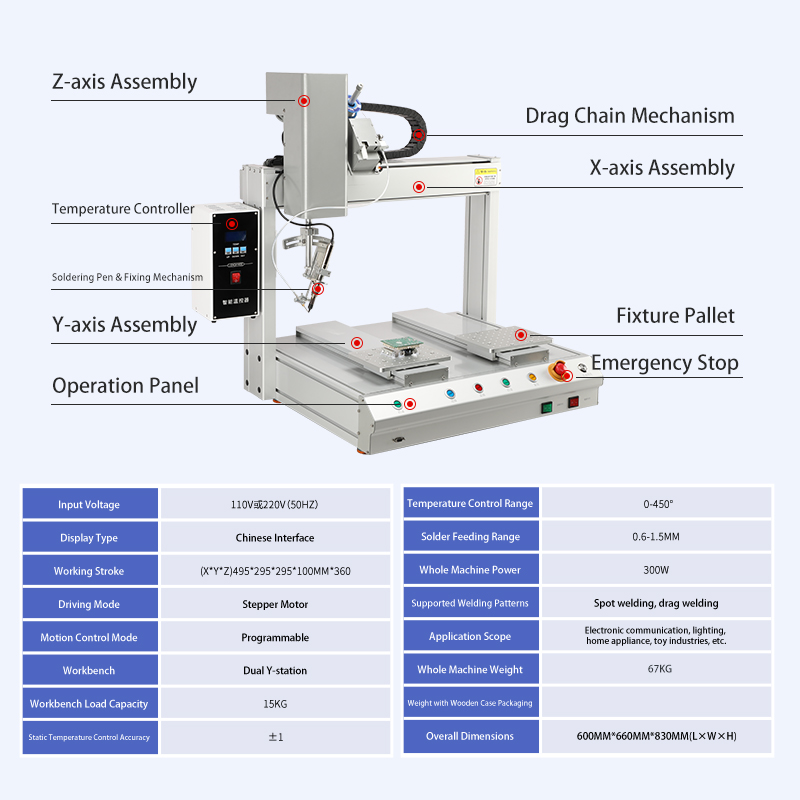

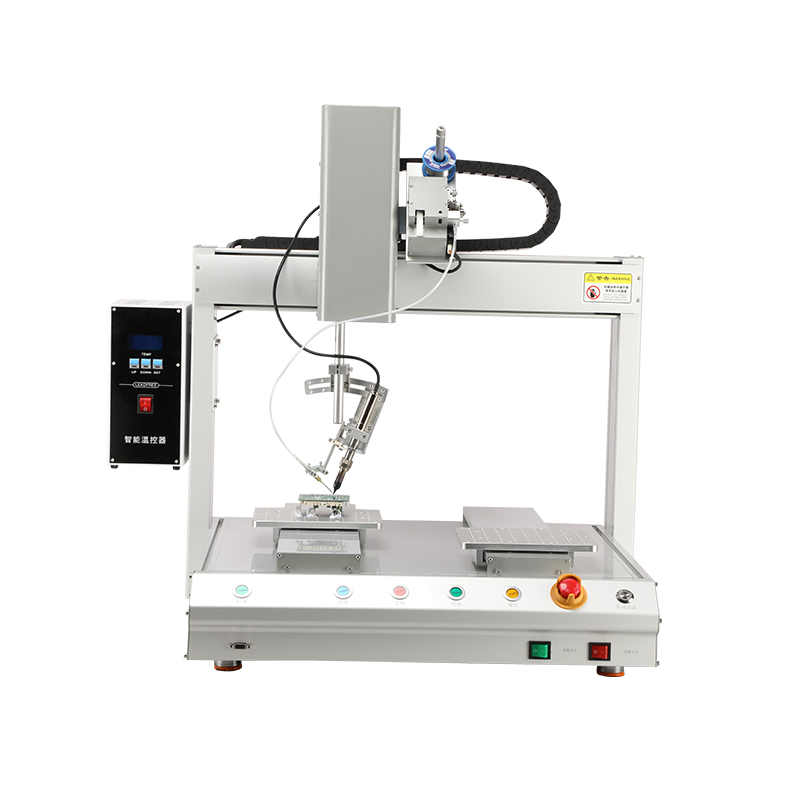

Component | Description |
|---|---|
X-axis Assembly | Horizontal motion beam for lateral positioning |
Y-axis Assembly | Longitudinal motion on the base for depth positioning |
Z-axis Assembly | Vertical motion for soldering pen up/down movement |
Drag Chain Mechanism | Protects cables and tubes during motion |
Temperature Controller | External control module for precise temperature setting |
Soldering Pen & Fixing Mechanism | End effector with quick-change soldering tip |
Fixture Pallet | Dual work platforms for holding workpieces |
Emergency Stop | Red mushroom-head button for instant shutdown |
Operation Panel | Centralized control buttons for machine operation |
Perfect for PCB soldering, component assembly, and circuit board manufacturing. Supports both spot welding and drag welding for various board types.
Ideal for soldering control boards, power modules, and sensor assemblies in refrigerators, washing machines, air conditioners, microwaves, and more.
Suitable for soldering mobile phone components, communication modules, antenna assemblies, and base station circuit boards.
Handles automotive fuse boards, headlight assemblies, radar modules, and sensor soldering with precision and consistency.
Reliable for small-scale soldering of toy circuit boards, battery contacts, and electronic components inside toys.
Application | Description |
|---|---|
Antenna Soldering | Precision soldering of antenna wires and connectors |
10-layer Board Drag Soldering | Multi-layer PCB drag soldering |
Motor Soldering | Coil and stator connection soldering |
Wire Harness Soldering | Multi-wire harness to PCB connection |
Automotive Fuse Board | Fuse board contact soldering |
Automotive Headlight | Headlight PCB assembly soldering |
PCB Drag Soldering | Green PCB surface drag soldering |
Automotive Radar | Radar module copper substrate soldering |
E-cigarette Tube | Cylindrical electronic component soldering |
Water Pump | Small pump component soldering |
LCD Screen | Screen edge pin soldering |
Rotary Cannula | Rotary fixture tube soldering |
Service | Description |
|---|---|
Reliable Manufacturer | Direct factory support with worry-free after-sales service |
Free Video Installation & Training | Step-by-step video guidance for setup and operation |
1-on-1 Technical Guidance | Professional team provides personalized technical support |
Customized Solutions Free of Charge | Tailored solutions to meet your specific production needs |
Non-standard Customization & Free Sample Testing | Custom machine configurations with free sample testing |
Lifetime Free Technical Consultation | Ongoing technical support for the life of the machine |
Precision solder feeding conduit ensures smooth solder delivery with multiple specifications available
Soldering pen equipped with a front sensor for fast temperature recovery and accurate control
Soldering tip adopts an oriented quick-plug design for efficient and convenient replacement
Easy to operate, supports single-step simulation welding
Switchable between Chinese and English interfaces
Compact design with ergonomic grip and clear button layout
Brand-specific accessories, all made of high-quality materials
Comfortable to touch with long service life
Feature | Specification |
|---|---|
Touch-control Temperature Range | 100°C - 500°C |
Temperature Control Accuracy | ±1°C |
Adjustable Sleep Time | 10 - 990 seconds |
Safety Alarms | Over-temperature detection alarm, leakage detection alarm |
Lead-free Compatible | Supports lead-free soldering processes |
The intelligent temperature controller features advanced lock-in temperature control technology:
Fast ramp-up: Rapidly reaches target temperature
Stable hold: Temperature fluctuation controlled within ±1°C
Compared to standard controllers: Significantly reduces temperature overshoot and fluctuation, ensuring consistent solder joint quality
The machine body is made of aviation-grade aluminum alloy, which is:
Reliable and durable
Rust-proof and corrosion-resistant
Lightweight yet strong
Built with industrial slotted aluminum profiles for structural integrity
Feature | Benefit |
|---|---|
Applicable solder wire diameter | 0.6-1.5 mm |
Tin breaking function (tooth blade) | Clean wire break, no jamming |
Reduced solder splashing | Cleaner work area, less waste |
Independent components | Easy maintenance and replacement |
Compatible with various wire diameters | Flexible for different applications |
Speed: 1 solder joint per second
Economical: Saves solder wire compared to manual soldering
The machine supports spot welding, drag welding, in-line welding, and arc welding. It can handle a wide range of applications from simple PCB through-hole soldering to complex multi-layer board drag soldering.
The machine comes with a handheld teaching pendant that makes programming intuitive. You can teach points manually, run single-step simulation, and the interface is switchable between Chinese and English. Free video training and 1-on-1 technical guidance are provided.
The temperature control accuracy is ±1°C with a range of 0-450°C. This level of precision ensures consistent solder joint quality, eliminates cold solder joints, and prevents damage to heat-sensitive components — critical for high-reliability electronics manufacturing.
Yes. We offer free customized solutions and non-standard customization including color, shape, and logo customization (for orders of 5+ units). You can also send us your samples for free sample testing to verify the machine meets your requirements.
The machine supports 110V or 220V (50Hz). Please specify your local voltage when ordering. The standard model (X/Y/Z stroke: 495×295×295×100mm×360°) is suitable for most applications. If you need a different working stroke or special configuration, contact our team for a customized solution.
Need help choosing the right soldering solution? Want to test your samples? Contact our team for expert advice and free sample testing.
Precision soldering, intelligent automation — built for the future of manufacturing.
