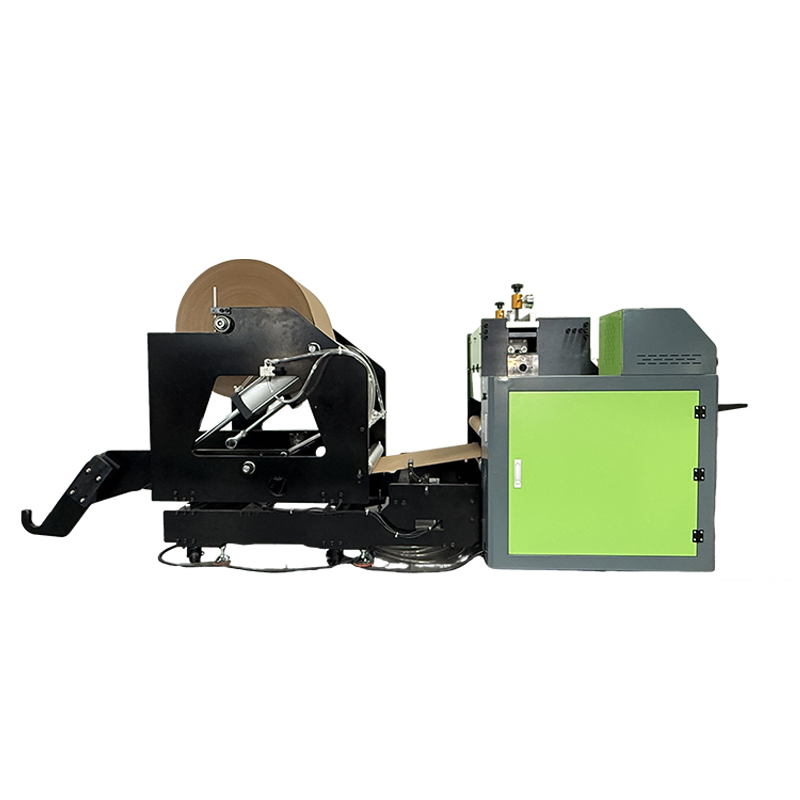

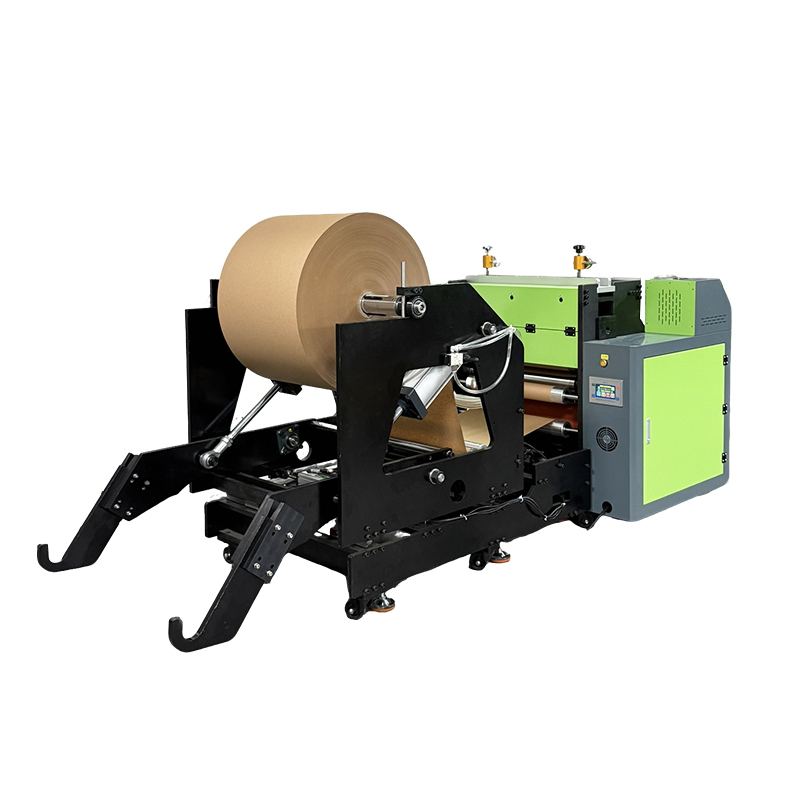

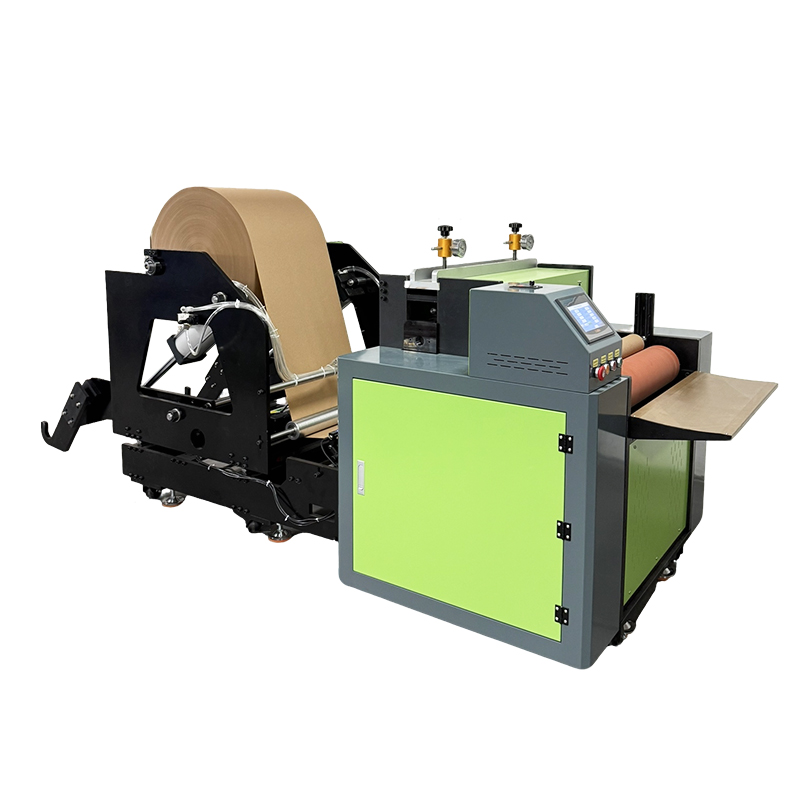

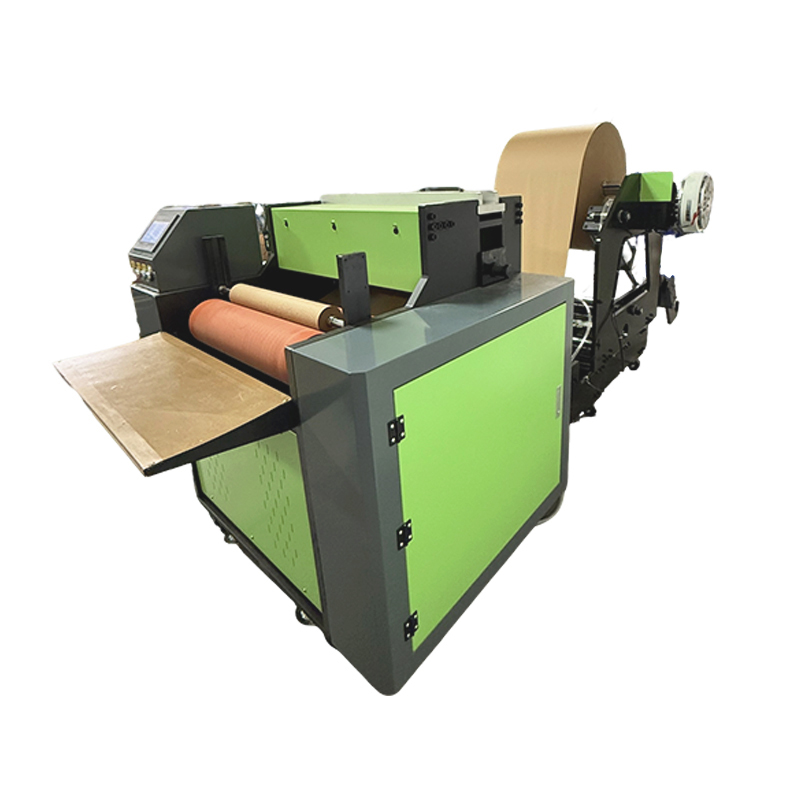

The CZD Honeycomb Paper Making Machine is a professional-grade automated machine designed to convert kraft paper rolls into high-quality honeycomb cushioning paper. With a unique honeycomb structure that provides excellent shock absorption, ductility, and stability, this paper serves as a sustainable, biodegradable alternative to plastic bubble wrap, foam, and other non-recyclable packaging materials.
Whether you run an e-commerce warehouse, a logistics center, a packaging company, or a manufacturing plant, this machine helps you reduce packaging costs, eliminate plastic waste, and produce protective packaging on demand.
Problem | Solution |
|---|---|
Spending money on bubble wrap, foam, and plastic fillers | Produce free cushioning material from kraft paper rolls |
Plastic packaging banned or restricted in many countries | Use 100% biodegradable honeycomb paper — fully compliant with global regulations |
Need to store bulky packaging materials | Produce packaging on demand — no storage needed |
Fragile products damaged during shipping | Honeycomb structure provides excellent shock absorption and anti-swing protection |
Customers demand eco-friendly packaging | Show your commitment to sustainability with plastic-free packaging |
Feature | Description |
|---|---|
High-Quality Die-Cutting Rollers | Made of cold-worked die steel. Independently produced knife molds — up to 1,000,000 meters without sharpening. |
High-Speed Operation | Die-cutting speed up to 150 m/min. 1-5 rolls per minute, 60-300 rolls per hour. |
Automatic Cutting & Rewinding | Set any number of meters or rolls — auto cut and rewind. System stops and alarms when target is reached. |
Roll Edge Sensor & Controller | Ensures each roll is wound neatly with smooth edges — no misaligned paper. |
Visible Pressure Adjustment Gauge | Precisely adjust cutting pressure to suit thick, hard, soft, or tough paper types. |
Adjustable Paper Tension | Freely adjust winding tension — tight or loose winding as needed. |
PLC Touch Operation Screen | Intuitive interface, easy to learn. Beginners can quickly master operation. |
Friction-Type Winding Device | Automatically adjusts front and rear tension for consistent winding quality. |
Aviation-Grade Aluminum Alloy Frame | Reliable, durable, rust-proof, and corrosion-resistant. |
CE / RoHS / UKCA Certified | Meets international safety and environmental standards. |
Parameter | Specification |
|---|---|
Cutting Speed | 0 - 150 m/min |
Cutting Width | 0 - 500 mm |
Winding Length | 0 - 300 meters |
Power | 5 KW |
Voltage | AC 380V / 50Hz |
Machine Size (L×W×H) | 3200 × 1450 × 1290 mm |
Machine Weight | 1.6 tons |
Unwinding Diameter | ⌀ 1200 mm |
Die Life | 800,000 - 1,000,000 meters |
Component | Description |
|---|---|
Unwinding Stand | Holds kraft paper rolls up to ⌀1200mm with adjustable tension control |
Processing Main Unit | Core processing body with die-cutting rollers, pressure adjustment, and control system |
PLC Touch Control Panel | User-friendly interface for setting parameters, monitoring production, and controlling operations |
Die-Cutting Rollers | High-precision rollers made of cold-worked die steel for clean, consistent cutting |
Friction Winding Device | Automatically adjusts tension for neat, even winding |
Edge Sensor Controller | Optical sensor ensures each roll edge is aligned and smooth |
Output Platform | Receives finished honeycomb paper for easy collection |
The independently developed automated honeycomb paper die-cutting machine can automatically cut the paper after winding, with precise cutting, beautiful winding, and automatic pause after winding. It significantly reduces the difficulty of work, allowing one person to monitor multiple machines.
Metric | Value |
|---|---|
Die-cutting speed | 150 m/min |
Output | 1-5 rolls/min, 60-300 rolls/hour |
Labor requirement | 1 operator can manage multiple machines |

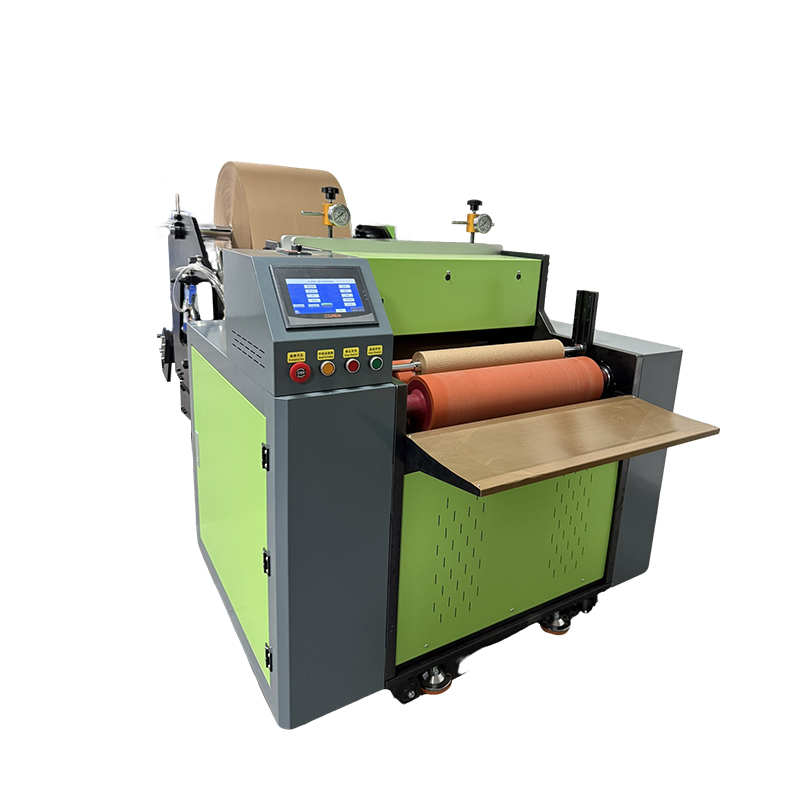

The machine features a PLC touch operation screen with an intuitive interface. The whole machine is designed simply and is easy to operate. It can easily complete the upper and lower winding. The friction-type winding device can automatically adjust the front and rear tension, and the winding tightness can be adjusted. It is easy to learn — even beginners can quickly master the operation.
Module | Description |
|---|---|
High-Quality Die-Cutting Rollers | Made of cold-worked die steel. Independently produced knife molds — 1 million meters without sharpening. |
High-Speed Operation | 150 m/min die-cutting speed. 1-5 rolls/min, 60-300 rolls/hour. Meets high production needs. |
Automatic Cutting & Rewinding | Set any number of meters or rolls — auto cut and rewind. System stops and alarms when target is reached. |
Roll Edge Sensor & Controller | Ensures each roll is wound neatly with smooth edges — no misaligned paper. |
Visible Pressure Adjustment Gauge | Precisely adjust cutting pressure to suit thick, hard, soft, or tough paper types. |
Adjustable Paper Tension | Freely adjust winding tension — tight or loose winding as needed. |
Honeycomb paper provides excellent cushioning for fragile items such as glassware, ceramics, electronics, and wine bottles. The unique honeycomb structure absorbs shock and prevents movement during transit.
Replace plastic bubble wrap and foam peanuts with eco-friendly honeycomb paper. Perfect for filling voids in shipping boxes and protecting products of all shapes and sizes.
Honeycomb paper has strong plasticity — it can be shaped to fit products with unusual contours, providing customized protection for every item.
Available in various colors (blue, white, red, pink, black, and natural brown) to match branding needs or product categories.
Suitable for heavy-duty packaging of machinery parts, automotive components, and industrial equipment.
Industry | Application |
|---|---|
Fragile Items | Glass bottles, ceramics, wine bottles, electronics |
E-Commerce | Void fill for shipping boxes, product wrapping |
Food & Beverage | Bottle packaging, drink containers |
Home Appliances | Appliance cushioning during transport |
Industrial Parts | Machinery components, automotive parts |
Art & Crafts | Ceramic tea sets, delicate artwork |
Property | Description |
|---|---|
Structure | Unique honeycomb mesh structure |
Ductility | Strong ductility for versatile shaping |
Stability | Stable structure for reliable protection |
Cushioning | Excellent shock absorption and anti-swing |
Eco-Friendly | 100% biodegradable, plastic-free |
Customizable | Available in multiple colors and sizes |
Effective August 12, 2026, the EU's new PPWR (Regulation (EU) 2025/40) sets strict requirements for all packaging placed on the EU market:
Heavy Metal Limits: Lead, cadmium, mercury, and hexavalent chromium total ≤ 100 mg/kg
PFAS Restrictions: Strict limits on PFAS in food contact packaging
Recyclability Requirements: All packaging must be recyclable by 2030; non-recyclable packaging banned
Plastic Reduction Targets: 10% reduction by 2030, 20% by 2040
How our honeycomb paper machine helps: By producing 100% paper-based, biodegradable honeycomb packaging, you eliminate the need for plastic-based packaging materials that are increasingly restricted under PPWR and similar regulations worldwide.
EU: Single-use plastic directive restricts 10 plastic product categories
UK: Plastic packaging tax on packaging with less than 30% recycled content
Canada: Ban on single-use plastics (phased implementation)
India: Ban on single-use plastic items effective 2022
Australia: National plastic plan targeting 70% recycling rate by 2025
Service | Description |
|---|---|
Reliable Manufacturer | Direct factory support with worry-free after-sales service |
Free Video Installation & Training | Step-by-step video guidance for setup and operation |
1-on-1 Technical Guidance | Professional team provides personalized technical support |
Customized Solutions Free of Charge | Tailored solutions to meet your specific production needs |
Non-standard Customization & Free Sample Testing | Custom machine configurations with free sample testing |
Lifetime Free Technical Consultation | Ongoing technical support for the life of the machine |
The company holds multiple international certifications:
ISO 9001 Quality Management System
CE Certification
RoHS Compliance
UKCA Certification
12+ Years of industry experience with a strict quality control system.
The machine uses standard kraft paper rolls with an unwinding diameter of up to ⌀1200mm. The paper is converted into honeycomb cushioning material with a unique mesh structure that provides excellent shock absorption.
The die-cutting speed reaches up to 150 meters per minute, producing 1-5 rolls per minute (60-300 rolls per hour). The high-speed operation meets demanding production needs while maintaining consistent quality.
The die-cutting rollers are made of cold-worked die steel and can last up to 1,000,000 meters without requiring sharpening. The knife molds are independently produced by our factory, ensuring quality control and reliable supply.
Not at all. The machine features a PLC touch operation screen with an intuitive interface. The friction-type winding device automatically adjusts tension, and the entire system is designed for easy learning — even beginners can quickly master the operation. Free video training and 1-on-1 technical guidance are provided.
Honeycomb paper is suitable for a wide range of products including glassware, ceramics, electronics, wine bottles, automotive parts, home appliances, and industrial components. Its strong plasticity allows it to be shaped to fit irregular contours, and it provides excellent shockproof, anti-swing, and cushioning protection.
Need help choosing the right model? Want to test your samples? Contact our team for expert advice and free sample testing.
